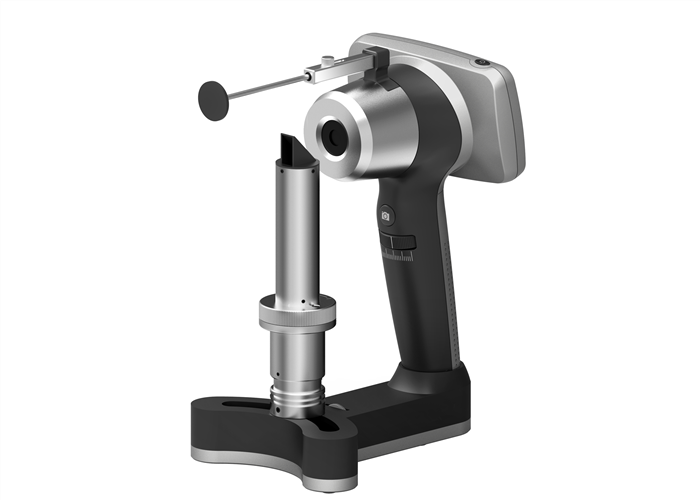

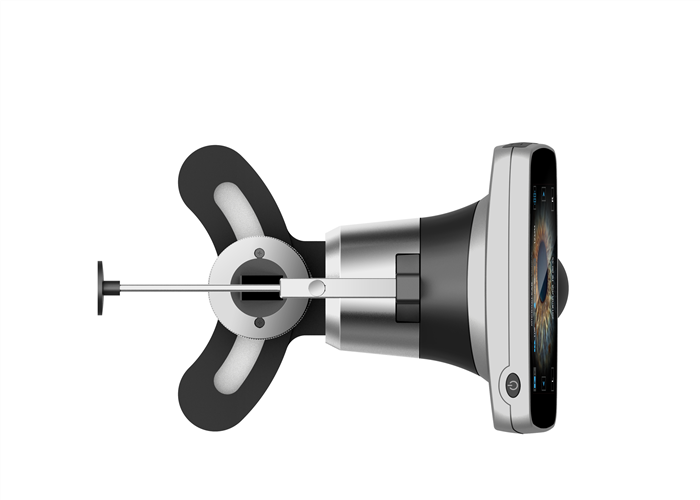

Handheld Slit Lamp Portable Ophthalmoscope Camera With 3.97 Inch Touch Color Screen Image Resolution 16MP
HSL-NEW, Digital Hand-held Slit Lamp is used for anterior segment imaging,diagnosis,especially
for anterior disease screening. Combining observation with imaging, it offers clearer observation
and higher definition images of eyelid,conjunctiva, cornea, iris, lens and vitreous,etc.
With quick lens adjustment and lightbody, it is much easier and more convenient to be applied
in rapid screening, out diagnosis, clinical observation and remote medical treatment.
The Ophthalmic Slit Lamp is consists of forehead module,lens module,illumination module,
base module ,camera module,battery,shell,USB cable and software disc.
Application scope
Digital handheld slit lamp is mainly used for ophthalmic examination in hospitals,outdoor diagnosis,Remote diagnosis,etc
Product Advantage
1. High definition imaging
2. Real-time focus system
3. Super large touch screen
4. Cloud service system
Product Feature
1. High definition imaging
1)Real-time focus system
2)Real-time dynamic display
2. New optical system
1) a wide field of vision
2) For anterior segment photography
3) Professional optical design
3. Easy to operate and capture high definition images
1) Ergonomic application, ergonomic design
2) One-click to capture images
4. Multi data transfer and storage system
1) Built-in 16G storage(can storage 80,000 images)
2) USB connect the computer and export.
3) Real-time Wifi, computer, mobile terminal and cloud transmission, as well as data analysis and software upgrading services.
5. Lightweight and portable
1) 850g
2) Remote diagnosis and mobile medical preferred
3) Battery works continuously:6 hours
Product Parameter
| Model | HSL-NEW |
| Product name | Digital handheld slit lamp |
| Screen | 3.97inch TFT-LCD color touch screen |
| Illumination angle | ≥30° |
| Object eyepiece | 0.42X |
| Forehead rest bar | ≥10mm |
| Numerical aperture | 0.05 |
| Slit width | 0mm~12mm |
| Aperture diameter | 0.2mm,1mm, 5mm, 12mm |
| Filter | Heat-absorption, Red-free, Cobalt blue |
| Light source | White LED |
| Image resolution | 16MP |
| Imaging /Video format | JEPG/3GP |
| Transmission | MIni USB,WIFI,BT |
| Storage | 16GB MicroSD card |
| Power | 3.6V/3400mAh rechargeable battery |
| Interface | Micro USB |
| Focus Mode | Auto |
| N. Weight | 850g(Typical) |
| Size | 14*12*23cm |
| Packing size | 36*29*26cm |
Packing list
| Item | Quantity |
| Digital handheld slit lamp | 1 pcs |
| Forehead rest | 1 pcs |
| USB cable | 1 pcs |
| Power adapter | 1 pcs |
| Battery 18650(NCM18650-220) | 1 pcs |
| User's manual | 1 pcs |
Product Shows
BIO-catalogue for Digital Hand-held Slit Lamp.pdf
